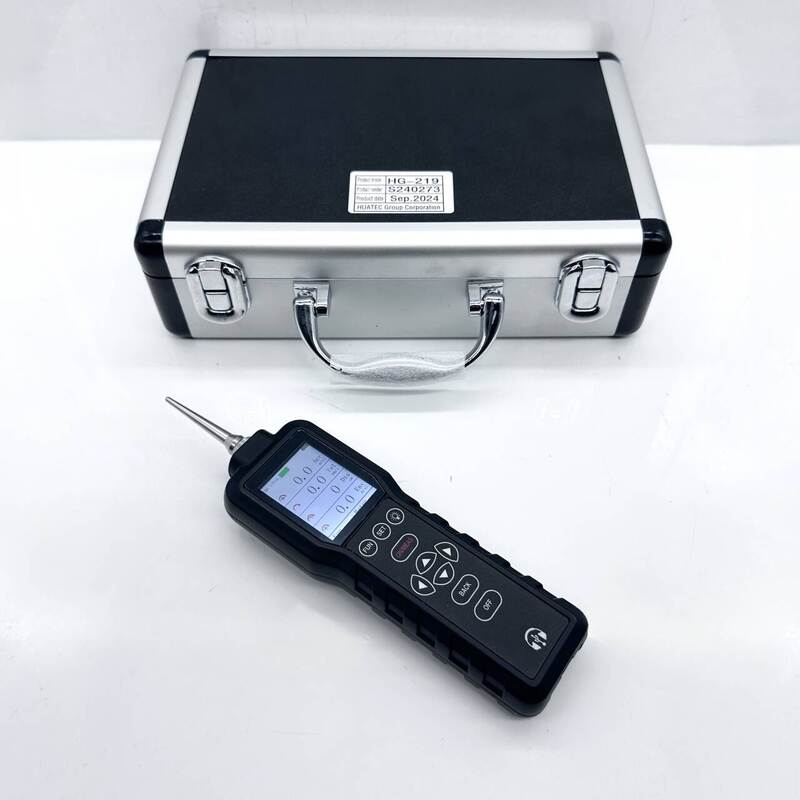

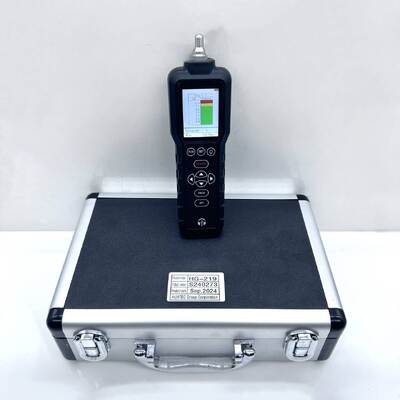

Multiple Functions Vibration Detector With Dedicated Computer Analysis Software
overview
The HG-219 vibration detector has multiple functions, including a vibration meter (with ISO10816-3 standard), data acquisition device, thermometer, frequency analyzer, electronic stethoscope, lighting, etc. Five vibration measurement parameters can be selected, including automatic hold, automatic storage, and automatic shutdown. It can not only measure vibration parameters such as acceleration, velocity, displacement, and envelope, but also diagnose faults in rotating and reciprocating machinery; And it is possible to diagnose faults in rotating machinery, bearings, and gears by measuring the envelope value of the bearings. The measured values meet the intensity standards of rotating machinery and are widely used for fault detection of mechanical equipment in fields such as mechanical manufacturing, electricity, chemical engineering, etc.
Equipment features
1) 2.0-inch high-definition color screen, displaying multiple parameters simultaneously at a glance.
2) Can measure multiple parameter vibration values and display waveforms, spectra, and spectrum lists
3) Measurable vibration bearing envelope, used for fault detection of various rolling bearings
4) Measurable temperature
5) Can connect headphones with device malfunction auscultation function
6) Lighting function provides assurance for on-site work.
7) There is a USB data communication interface that facilitates communication with computers.
8) USB data communication interface, compatible with charging function, high battery life, at least 8 hours of standby time.
9) It can store data and waveforms from 100 measurement points, and can be used in conjunction with computer analysis software to perform 400 line frequency spectrum analysis on waveforms.
10) The measurement point data includes acceleration, velocity, displacement, envelope and other numerical values. The waveform of each measurement point is a 1024point waveform.
11) Equipped with dedicated computer analysis software to achieve data management, trend analysis, waveform analysis, and 400 line resolution spectrum.
12) Scheduled automatic shutdown
Parameter measurement:
Acceleration (ACC unit: m/s2): Equivalent peak value
Velocity (VEL unit: mm/s): true RMS value
Displacement DISP (unit: m): peak to peak value
Env (unit: m/s2): True Significant Value
Temperature: Infrared measurement of surface temperature of objects
●Store 100 points (including 4 vibration values and 1 waveform)
Technical indicators
1. Accelerometer vibration sensor:
2. Measurement range, frequency response range, and accuracy:
| Parameter |
measuring range |
Frequency range |
Accuracy |
| Acceleration |
0.1—199.9m/s2 |
10-5KHz |
±5% |
| Velocity |
0.1—199.9mm/s |
10-1KHz |
±5% |
| Displacement |
1—1999um |
10-500Hz |
±5% |
| Envelope |
0.1—19.9m/s2 |
10-5KHz |
±5% |
|
Temperature
Hh
|
-20—180℃ |
|
±1% |
●Dimension: 180 x 50 x 25 (mm)
●Weight: 100g (including battery)
● Battery: When there is a low power display, connect the communication cable to complete charging.
●Working temperature: 0 ℃~50 ℃, relative humidity:<85%
