HSC-500 Portable Metallurgical Microscope 100X-500X Magnification

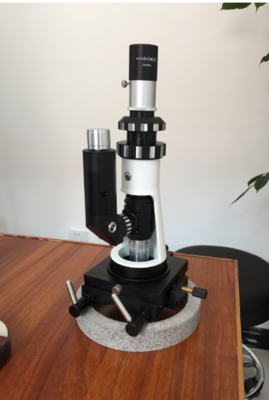

Image Grand : HSC-500 Portable Metallurgical Microscope 100X-500X Magnification

Détails sur le produit:

Place of Origin:	China
Nom de marque:	HUATEC
Certification:	CE
Model Number:	HSC-500

Conditions de paiement et expédition:

Minimum Order Quantity:	1 pc
Prix:	USD1050/set - USD1185/set
Packaging Details:	Carton packing box
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact

HSC-500 Portable Metallurgical Microscope 100X-500X Magnification

description de

Eyepiece:	WF10X/ф6	Objective:	10X, 20X,50X
Total Magnification:	100X-500X	Focusing range:	25mm
Mechanical tube length:	160mm	Power supply:	3.6v
Mettre en évidence:	portable metallurgical microscope 500x magnification , HSC-500 microscope for non-destructive testing , metallurgical microscope with 100x-500x range

HSC-500 Portable Metallurgical Inspection Sample Organization Analysis Microscope

Product Description:

HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.

Applicable to metallographic inspection of various work pieces which is large or unable to make sample.

No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.

This machine can identify different metal and alloy organization structure.

Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.

Main Parameters:

No.	Item	Specification
1	Eyepiece	WF10X/ф6
2	Objective	10X, 20X,50X
3	Total Magnification	100X-500X
4	Focusing range:	25mm
5	Mechanical tube length:	160mm
6	Power supply	3.6v
7	Weight	N.W.: 0.75kg G.W.: 0.9kg
8	Dimension	Instrument dimension: 230X110X70(mm)

Standard configuration:

No.	Item	Main Specification	Unit	Quantity
1	Main unit	HSC-500	Set	1
2	Objective	10X, 40X,50X (optional)	Piece	1 each
3	Eyepiece	10X	Piece	1
4	Illuminator	Installed on the main body	Piece	1
5	Battery charger		Piece	1
6	Magnetic base		Piece	1
7	C mount adapter		Piece	1
8	Instruction manual		Piece	1
9	Calibration certificate		Piece	1

Optional parts:

Eyepiece: 12.5X

Objective: 50X

HSC-500 Portable Metallurgical Microscope 100X-500X Magnification 0
