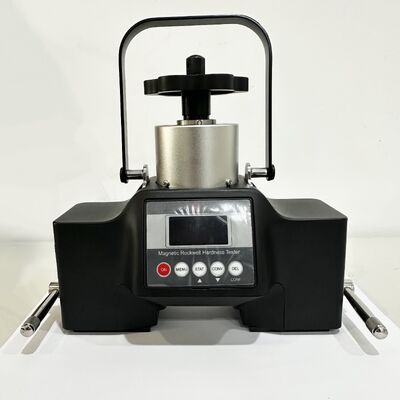

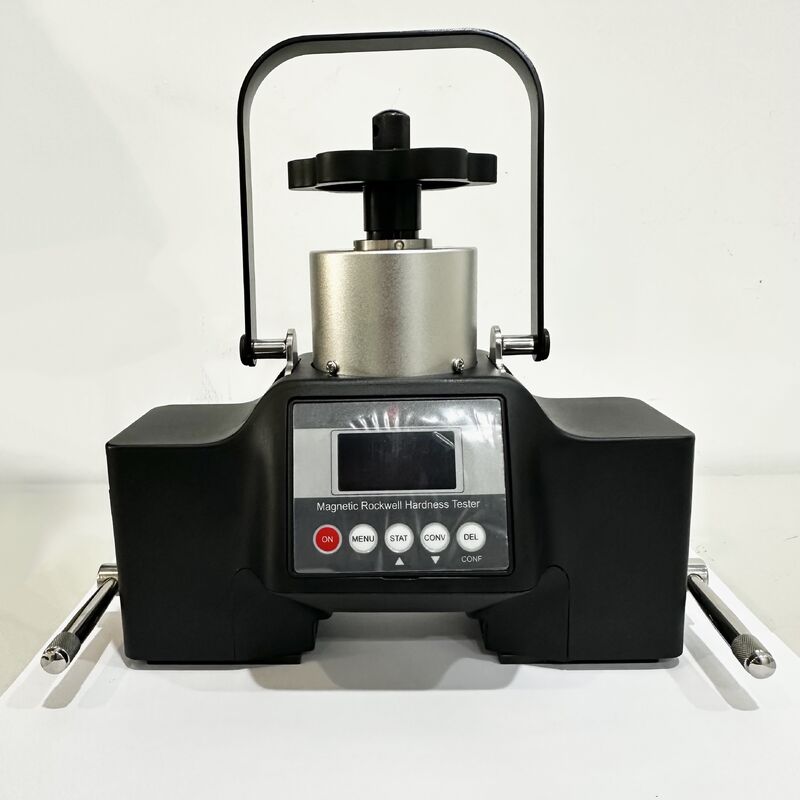

HR-P200 Magnetic High-accuracy Intelligence Digital Rockwell Hardness Tester

HR-P200 Magnetic High-accuracy Intelligence Digital Rockwell Hardness Tester

APPLICATION

Apply to test too large or heavy iron and steel parts for the desk testers.

Test the hardness of steel parts, bearings, moulds; large and medium-sized heating parts.

Test a large batch of parts piece by piece on site.

Replace inaccurate and unreliable Leeb hardness tester, in a wide range of manufacture industry.

TECHNICAL PARAMETERS

FEATURES

World leading product designed and manufactured by HUATEC Group with patent, because of high-accuracy sensor and unique distance measuring technology, reaching far higher test accuracy than other portable hardness testers.

It is fixed onto the surface of an iron and steel part smartly with magnetic chucks. Simply reached one side of the part, the test could be accomplished. Only if the surface is available, an iron and steel part could be tested, no matter what shapes and sizes are.

It follows the Rockwell Hardness Test Principle, and complies with relevant regulation of ISO6508, and ASTM E18 standards.

It simplifies the operation steps of Rockwell Hardness Test: directly load total test force; maintain it for a few seconds; release the total test force and then the test is finished. It takes about only 10 seconds for a test, high effective.

It permits customer to calibrate the tester with a standard block at any time.

It could be operated under a temperature range of 0℃ to 50℃ either indoor or outdoor.

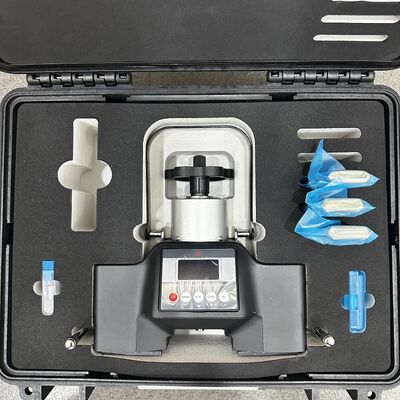

STANDARD ASSEMBLY

Hardness Tester HR-P200

120°Diamond Indenter

1/16” Carbide Alloy Ball Indenter

Rockwell Hardness Block

Seat Iron

Recharger

Battery Box

Carrying Case

Instruction Manual

Certificate
