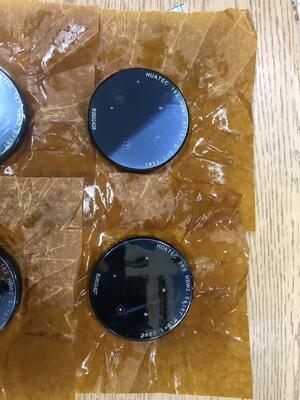

Brinell Hardness Test Block for Standard Calibration

Brinell Hardness Test Block for Standard Calibration

The Brinell hardness block is a standard test block used for calibrating Brinell hardness testers. The hardness value (HBW) is calculated by measuring the indentation diameter. The key information is as follows: Core characteristics and parameters

1. Test principle
A hard alloy ball indenter (with a diameter of D = 2.5/5/10 mm) is applied with a test force (e.g., 306N - 3000kgf), and the holding time is 10 - 35 seconds. Then the indentation diameter d is measured, and the calculation formula is:
HBW = 0.102 × (2F) / [πD(D - √(D² - d²))]
Hardness value range: 8 - 650 HBW. If the upper limit is exceeded, a Rockwell hardness tester should be used instead.
2. Non-destructive testing positioning
The indentation is large (usually 0.24D - 0.6D), which is a micro-damage test. It is not applicable to finished products or thin-layer materials (the thickness should be ≥ 8 times the indentation depth). It is suitable for macroscopic hardness assessment of coarse-grained materials, composite materials, etc.
3. Scale selection
· HBW10/3000: Steel, nickel-based alloys (95 - 650 HBW)
· HBW10/1000: Aluminum alloy, copper alloy (31 - 218 HBW)
· HBW5/250: Thin parts or soft metals
4. Latest standards and specifications
· GB/T 231.1-2018: Test method (replacing the 2009 version)
· GB/T 231.3-2022: Standard hardness block calibration (under the jurisdiction of the National Testing Machine Standards Committee)
· Calibration requirements: Surface roughness ≤ Ra 0.8μm, the center distance between adjacent indentations is ≥ 3 times the indentation diameter. Practical precautions
· Sample requirements: The surface should be flat and free of oil stains, the thickness should be ≥ 10mm (to avoid back deformation), and the test surface should be parallel to the bottom surface.
· Equipment calibration: Use the standard block to pre-press 5 points every day. If the error exceeds the limit, calibration is required (such as the indentation diameter measurement error ≤ 1%).
· Limitations:
· Results of different scales cannot be directly compared (e.g., HBW10/3000 and HBW5/250);
· The hardness value cannot be precisely converted to Rockwell or Vickers hardness (refer to ASTM E140, which requires customer confirmation). Industry application scenarios
· Applicable fields: Batch detection of castings, forgings, annealed/normalizing steel, etc. of coarse-grained materials.
· Alternative solutions: For finished products or thin-layer materials, it is recommended to use surface Rockwell hardness (non-destructive) or micro-area Vickers hardness (micro-region). > If on-site rapid detection is needed, the Leeb hardness tester can be used for portable measurement, but there is an elastic modulus interference error (the result is usually lower), and it should be used with caution.
