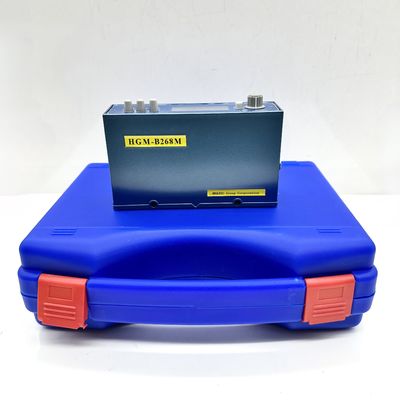

HGM-B268M Portable Multi-Angle Gloss Meter 20° 60° 85° for Metal & Coating Surface

HGM-B268M. The gloss meter executive the ISO-2813,ISO-7668,GB8807 standard which is the high accuracy, the miniaturized gloss meter. Test with three angles of 20,60 and 85 degree of angle.

HUATEC Gloss meter Reference angle for different application

2. Application

●All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc.
●Decorative materials, such as metal, marble, granite, polishing brick, ceramic tile and so on.
●The other kinds of materials and objects, such as plastic, woodenware, paper, etc.

When the power is low show "bAtt" words, at this time should be used in time-specific charge rechargeable power supply, rechargeable power supply plug into sockets on the equipment side of the charge, charge time in about four hours. Charging standard "⊕", led the charge when the panels were lit.

Calibration
When the standard equipment on board and show that numerical standards board is greater than the difference between the nominal value of 1.2 gloss units, the following methods should be calibrated
Measuring instruments on the window and down the board, press the "home / home zero" key, show value for the 0.0 at this time.
A black glass plate instead of the standard black-velvet panels, measuring instruments on the window, rather than pressing the "calibration / measurement of" key, set to enter the state, showed that at this time, "000.0" and the first "0" flashes. Rather than pressing the "shift" key-flashing shifted to right, rather than pressing the "home / home zero" key "flicker" values change from 0-9-0, through pressed "shift" and "home / home zero" Made with numerical keys and display glass panels with a nominal value of the same standard, at this time rather than pressing the "calibration / measurement," the completion of key settings. Then white ceramic standard equipment on board, show value and the standard white ceramic plate with a nominal value of the error should not be greater than ± 1.2 gloss units, or else should be considered standard dirty plates. After the completion of the above-mentioned steps can be measured samples.

NOTE
Contents of this instrument 4 rechargeable batteries,
Package of instruments include:

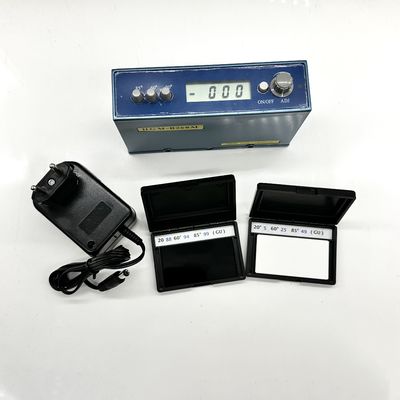

Host a standard set of plates: black and white piece of the board, board zero a (standard on black velvet box), a manual, a certificate, a charger, an instrument box.
