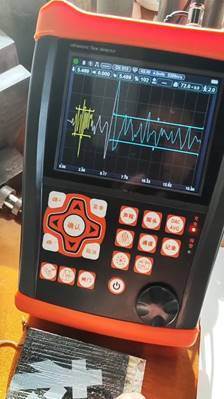

HFD-810 Ultrasonic Bond Tester Waterproof Layer Thickness Adhesion Tester

HFD-810 Ultrasonic Bond Tester Waterproof Layer Thickness Adhesion Tester

Features:

  Key parameters tested for the waterproof layer: thickness and adhesion.

  Supports full testing procedures; easy to operate, enabling waterproof layer inspection right after startup.

  Assisted inspection with B-scan imaging.

  Repetition rate: 16–15000 Hz adjustable with high precision; high-speed scanning ensures no defects are missed.

  High signal-to-noise ratio, extremely stable waveform, and special anti-interference design for reliable operation in harsh conditions.

  12-bit AD converter, compatible with 25 MHz probes, delivering clear details with high sensitivity and resolution for tiny defects.

  Automatically analyzes and evaluates probe performance, and generates a probe evaluation report.

  High-precision thickness measurement function.

  Bluetooth wireless transmission; on-site flaw detection report generation and printing via mobile APP.

  Flaw detection reports can be directly exported as editable PDF files without dedicated software.

  The instrument supports automatic upgrade via USB flash drive, convenient and efficient.

  IP65 protection rating, rugged, waterproof and dustproof; damping bracket allows adjustment to any angle.

 Single battery provides 15 hours of continuous operation, 3-hour fast charging, and supports independent charging; two batteries enable non-stop working.

Technical Specifications

Note: All the above indicators are measured with a probe frequency of 2.5 MHz and full-wave detection mode.

Functions

  Automatic calibration: One-key automatic calibration for convenient operation. Automatically calibrate probe zero point, K value, front edge and material sound velocity.

  Automatic display of defect echo position: depth d, horizontal p, distance s, amplitude, equivalent dB, diameter φ value.

  Functions including automatic gain, echo envelope and peak memory improve flaw detection efficiency.

  φ value calculation: For straight probe forging inspection, automatically convert to aperture φ value when locating the maximum defect echo; large flat bottom calculation is supported.

  500 independent flaw detection channels (expandable), free to input and store flaw detection standards for any industry, no need to carry test blocks on site.

  Store and playback up to 1000 A-scan waveforms and data (expandable).

  External U disk supported; internal storage can be exported at any time, and unlimited flaw detection files can be stored directly.

  B-scan: Real-time scanning and cross-section display, showing defect shape for more intuitive results.

  20 built-in flaw detection standards, support free input of any industry standard.

  Adjustable transmit pulse width and intensity.

  Bluetooth communication with mobile phones and computers for flaw detection report management.

  Powered by high-performance, safe and eco-friendly lithium battery. Standard version supports over 12 hours continuous operation; optional version extends to 15 hours.

  Real-time clock recording: Track, record and store the actual date and time of inspection.

  Digital suppression without affecting gain and linearity.

  Gain compensation: Correct dB attenuation caused by surface roughness, long-distance inspection of thick workpieces, etc.

  Curvature correction: For curved workpieces, display circumferential position and depth of defects in real time.

  Two input modes: angle and K value.

  Echo number analysis.

  Echo coding: Display 1–9 echoes in different colors for easy defect location.

  Screen freeze and unfreeze.

  Waveform filling.

  Power status indication.

  Capture marker.

  Waveform color marking within gate.

  Gate expansion.

Standard accessories

  Main unit: 1 pc

  Special straight probe for waterproof layer: 1 pc

  Straight probe DTM5: 1 pc

  9V power adapter: 1 pc

  Probe cable: 1 pc

  Product packaging box: 1 pc

  User manual: 1 pc

  Certificate of conformity, packing list, warranty card: 1 set

  Ultrasonic flaw detector mobile APP: 1 set

  Instrument wrist strap: 1 pc

Optional accessories

  Standard test block

  Other types of probes

  Other probe cables

  Couplant

  Bluetooth printer
