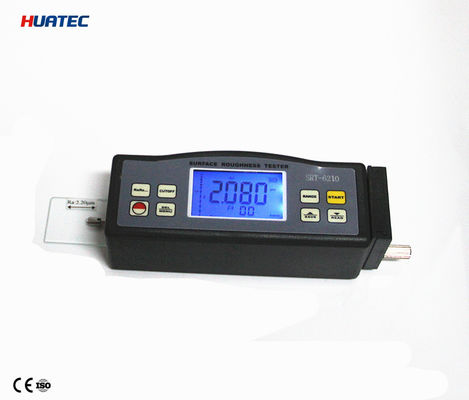

SRT-6210 Portable Surface Roughness Tester High Precision Inductance Sensor Ra Rz Rq Rt
Features:
This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt
* Highly sophisticated inductance sensor
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P
* Built-in lithium ion rechargeable battery and control circuit with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
*The tester can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
*Metric /Imperial Conversion
Specifications:
| Display |
4 digits, 10 mm LCD, with blue backlight
|
| Parameters |
Ra, Rz, Rq, Rt |
| Measuring Range |
Ra, Rq: 0.005-16.00um/0.020-629.9uinch
Rz,Rt: 0.020-160.0um/0.078-6299uinch
|
| Accuracy |
Not more than 10% |
| Fluctuation of display value |
Not more than 6% |
| Sensor |
Test Principle: Inductance type
Radius of Probe Pin: 5µm
Material of Probe Pin: Diamond
Dynamo-measurement of Probe: 4mN(0.4gf)
Probe Angle: 90º
Vertical Radius of Guiding Head: 48mm
|
| Maximum driving stroke |
17.5mm/0.7inch |
| Cutoff length (l) |
0.25mm / 0.8mm / 2.5mm optional |
| Evaluation length |
1-5L |
| Driving speed |
sampling length = 0.25mm Vt=0.135mm/s
sampling length = 0.8mm Vt=0.5mm/s
sampling length = 2.5mm Vt=1mm/s
returning Vt=1mm/s
|
|
Profile digital filter
|
Filtered Profile: RC
Filtered Profile: PC-RC
Filtered Profile: Gauss
Non-Filtered Profile: D-P |
| Resolution |
0.001u m if reading ＜10 um
0.01 um if 10 um ≤reading ＜100 um
0.1 um if reading ≥100 um |
| Evaluation length |
( 1~5) cut-off optional |
| Power Li-ion battery |
rechargeable |
| Operating conditions |
Temp. 0~50℃,Humidity <80%
|
| Size&Weight |
140x57x48 mm (5.5x2.2x1.9 inch),about 420 g
|
Standard Delivery:
Main Unit 1
Carrying Case 1
Standard Sensor 1
Standard Sample Plate 1
Power Adapter 1
Operation Manual 1
Screwdriver 1
Adjustable Leg 1
Sensor Protector 1
Optional Accessories:
Cable and Software for RS-232
Extension Rod
Measurement Support
Special pick-up for grooves,bores and holes
