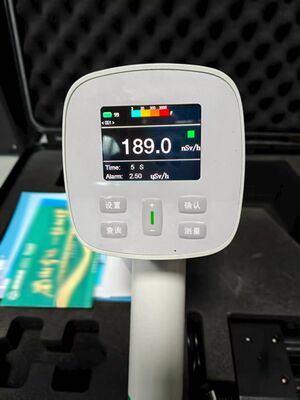

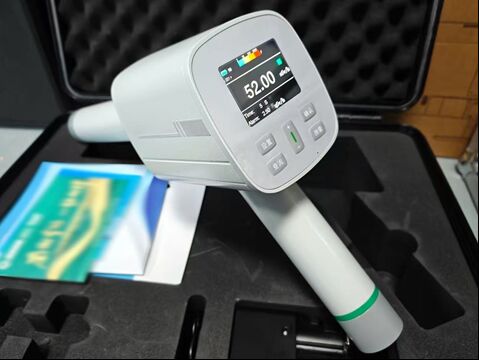

FJ-3602II High Sensitivity Radiation Dose Rate Monitor for Radioactive Workplace
PRODUCT PROFILE
The FJ-3602II X and γ Radiation Survey Meter is a specialized instrument for monitoring X and γ-ray radiation dose rates in various radioactive workplaces. Compared with similar domestic instruments, this device features a wide dose rate measurement range and superior energy response characteristics. This series of instruments offers measurement functions including dose rate, cumulative dose, and CPS, making the device more versatile and highly praised by users, particularly those in health supervision departments. It utilizes advanced microcontroller technology and an 8-stage photomultiplier tube detector. Through effective energy compensation, the instrument achieves both a broad measurement range and excellent energy response characteristics.
FUNCTIONAL CHARACTERISTICS
| Detector |
High-sensitivity φ30×25 mm NaI(Tl) scintillator + radiation-resistant photomultiplier tube |
| Detection radiation types |
X, γ rays |
| Energy range |
30 keV - 3 MeV |
| Dose rate range |
0.01-6000 μSv/h (Protection grade)
0.01-6000 μGy/h (Environmental grade)
|
| Cumulative dose |
0.00 μSv ~ 999.99 mSv |
| Relative intrinsic error |
≤ ±15% (within the whole range) |
| Measurement time |
Adjustable from 1, 5, 10, 20, 30...90 seconds, etc.
|
| Alarm threshold settings |
0.25, 0.50, 1.00, 2.5, 5.0, 10.0, 25.0, 50.0, 100, 250, 500, 1000, 2000 (μSv/h or μGy/h) |
| Measurement unit |
CPS, kCPS, MCPS, nSv/h, nGy/h, μSv/h, μGy/h, mSv/h, mGy/h
|
| Operating temperature range |
-20°C ~ +50°C |
| Dimensions |
399.5 mm × 94 mm × 399.6 mm; Weight: ≤ 1.5 kg |
| Display |
2.58-inch color screen, 320×240 dot matrix |
| Ingress Protection rating |
IP54 |
FUNCTIONAL FEATURES
① High sensitivity, wide measurement range and good energy response
② Microcontroller control, OLED color display with adjustable brightness
③ Built-in storage for 999 sets of dose rate data, accessible at any time
④ Capable of measuring both dose rate and cumulative dose
⑤ Dose rate threshold alarm function
⑥ Cumulative dose threshold alarm function
⑦ Dose rate overload alarm function
⑧ Over-range indication "OVER" function
⑨ Color bar dose range indication function
⑩ Battery undervoltage warning function
⑪ Complies with GB/T 17626.3-2018 Radio Frequency Electromagnetic Field Radiation Immunity Test
⑫ Complies with GB/T 17626.2-2023 Electrostatic Discharge Immunity Test
⑬ Waterproof and dustproof, meets GB/T 4208-2017 IP54 rating
⑭ Bluetooth communication function, enabling data viewing via mobile APP
⑮ WiFi communication function
⑯ All-metal robust housing, suitable for field operations
⑰ Over-range indication "OVER" function
⑱ Six operaion keys: Setting, Query, Confirm, Measure, Up and Down
