TG-100B Portable Ultrasonic Thickness Meter with 0.01mm Resolution for Petroleum & Shipbuilding

TG-100B Portable Ultrasonic Thickness Meter with 0.01mm Resolution for Petroleum & Shipbuilding

FEATURES

1,Adopting PE and VERI measurement modes, accurate thickness measurement can be carried out for various materials.

2,Using high precision timing chip and V-PATH calibration model, the measurement range is wide and the measurement precision is high.

3,Display resolution 0.1 and 0.01mm switchable.

5,Liquid Crystal Display contrast adjustable, and with LED backlight display, can be used in a variety of environments.

6,It is powered by two 1.5V AA dry batteries.

Application Field

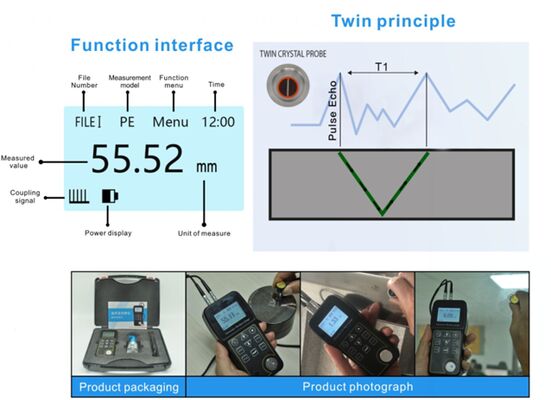

The thickness gauge is based on the principle of pulse reflection ultrasonic measurement. It is suitable for measuring the thickness of various materials which can be reflected from the back of the gauge. The measuring instrument can accurately measure all kinds of plates and all kinds of processed parts. Can Be widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields. For different applications, the instrument is divided into basic type,high-temperature type, cast iron type and precision type.

Probe Selection

Calibration:Zero Setting

Max / Min / Avg reading fuction is realized by pc software.

Data Ouput:USB interface.

Standard Configurations:

Thickness Gauge   1

Probe (dual element 5M 10mm)  1

Alkaline Battery   2

Couplant   1

Carrying Case   1

Operation Manual   1

USB Cable   1

Optional accessories

Various probe

Couplant for high temperature

Stepwedge block
