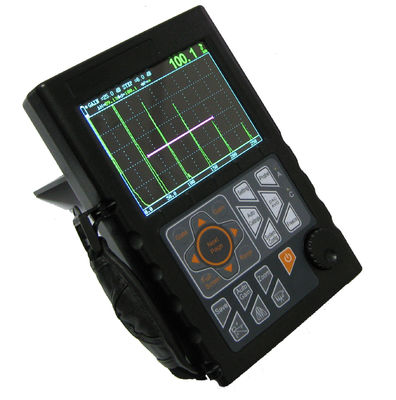

Digital Ultrasonic Flaw Detector FD510 with 0-110dB Gain 6000mm Measuring Range and Solid Metal Housing

The FD510 Digital Ultrasonic Flaw Detector is a high-performance testing instrument designed for industrial non-destructive testing applications, featuring advanced automation capabilities and robust construction.

• Automated calibration and automated gain control (0-110dB)
• DAC, AVG, TCG, B-scan, and AWS D1.1 compliance
• High-speed capture with very low noise operation
• Solid metal housing with water, oil, and dust proof protection
• High contrast waveform display for bright environments
• Powerful PC software with Excel report export capability

• Automated display of precise flaw location parameters (Depth d, level p, distance s, amplitude, sz dB, ф)
• Automated switching between three measurement scales
• Automated calibration of transducer zero-point, angles, front edge, and material velocity
• DAC/TCG and AVG curve creation and evaluation with modification and compensation
• 6dB DAC functionality
• 100 independent setups with customizable criteria for test block-free operation
• 500 A-scan waveform memory capacity
• Automated gain and gain scanning
• Peak hold and peak memory functions
• B-scan imaging capability
• Automated test process video recording and playback with unlimited storage via USB
• 9-hour continuous operation with lithium battery
• Online embedded software updates

• Display freeze
• Automated echo evaluation
• Angle and K-value calculations
• System parameter lock/unlock function
• Electronic clock and calendar
• Dual gate setting with alarm indication
• Gate and DAC alarm functions

• Main unit
• 2.5MHz-ф20 straight probe
• 4MHz-8x9mm, 60° angle probe
• 4A/9V power adapter
• Probe connection cable (BNC to BNC)
• Probe connection cable (BNC to Lemo 00)
• Instruction manual
• Carrying case
• RS232-USB converter

• Data managing software
• Data managing cables RS232
• Straight probe (5MHz-ф20)
• Straight probe (2.5MHz-ф20)
• Straight probe (2.25MHz-ф20)
• Straight probe (1MHz-ф20)
• Angle probe (4MHz-45°, 8×9mm)
• Angle probe (4MHz-60°, 8×9mm)
• Angle probe (4MHz-70°, 8×9mm)
• Angle probe (4MHz-80°, 8×9mm)
• Angle probe (2MHz-45°, 8×9mm)
• Angle probe (2MHz-60°, 8×9mm)
• Angle probe (2MHz-70°, 8×9mm)
• Angle probe (2MHz-80°, 8×9mm)
• Probe T/R (5MHz-ф20mm, focus 15mm)
• Probe T/R (2.5MHz-ф20mm, focus 15mm)
• Connection cable to probe (BNC-BNC)
• Connection cable to probe (BNC-Lemo 00)
• Connection cable to probe (BNC-Lemo 01)
• Connection cable to probe (Lemo 00-Lemo 01)
• Lithium ion battery
• Power adapter (4A/9V)
• Power cable
• Leather case
• Test block V1
• Test block V2
• Test block DAC, ASME etc.
