SRT-680G Contour and Roughness Waviness Integrated Tester with Digital Grating Sensor
Key Features
- Cartesian coordinates measurement with stylus contact
- High precision air floating guide rail for X-axis accuracy
- Digital grating sensor for precise Z-coordinate measurement
- Windows-based measuring program for data processing
- Three-axis electric control via software controller
- Comprehensive measurement capabilities for contours, roughness, and waviness
Technical Specifications
| Parameter |
Value |
| X axis |
200mm |
| Straightness |
0.6μm /100mm |
| Z1 (Range) Sensor |
40mm (Roughness range synchronization) |
| Z2 (Height) |
550mm |
| Linear accuracy |
≤±(1+I0.12HI)μm |
| Measurement speed |
0.02mm to 4.0mm/s |
| Measurement mode |
Sensor moving |
| Power requirement |
AC 220V±10% 50Hz |
Measurement Capabilities
Dimension: Horizontal distance, vertical distance, linear distance, radius, diameter
Angle: Horizontal angle, vertical angle, cross angle
Position tolerance: Parallelism and perpendicularity
Form tolerance: Straightness, crown, circular arc profile
Roughness parameters: Ra, Rq, Rz(Ry), Rz(DIN), R3z, Rp, Rv, Rt, Rsk, Rsm, and more
Waviness parameters: Wt, Wa, Wp, Wv, Wq, Wc, Wku, Wsk, and more
Physical Specifications
| Dimension |
Product (mm) |
Packing (mm) |
Weight (kg) |
| Length |
1400 |
960 |
270 |
| Width |
725 |
960 |
300 |
| Height |
1740 |
1950 |
0.88 CBM |
Environmental Requirements
Temperature: 10-30℃
Humidity: <85% RH
Vibration: No obvious vibration, RMS≤50Hz 2.5μm/s, RMS>50Hz 5.0μm/s
Power: AC 220V±10% 50Hz with independent grounding

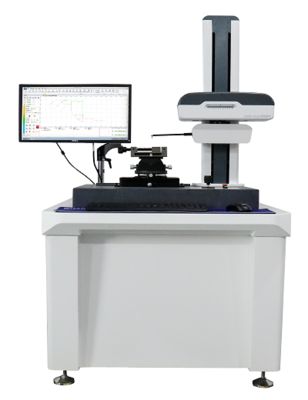

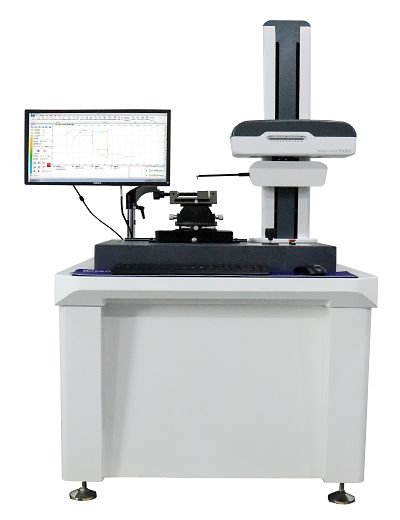

Product Images
